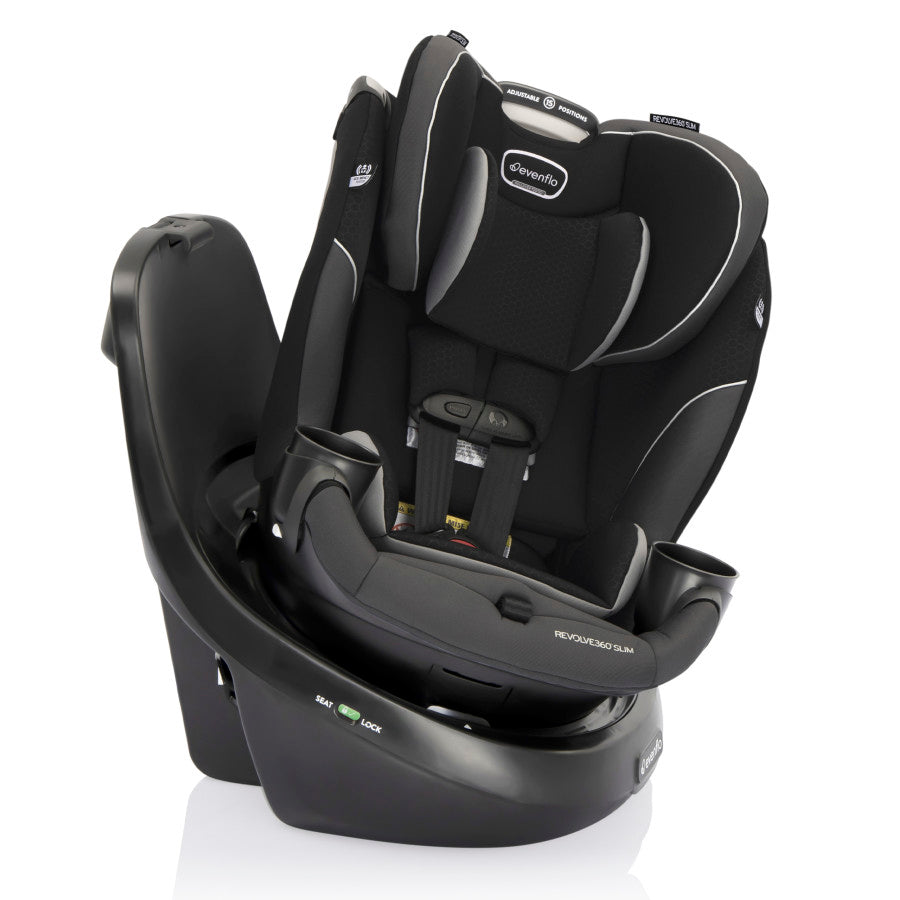

Revolve360 Slim

Car seats and booster seats sold in the US may not comply with all Canadian regulatory requirements and, for that reason, may not have the required Maple Leaf label. You should always purchase a car seat that is compliant to the standards of the country in which you live. If you live in Canada, you must use a car seat or booster seat that is compliant to the Canadian Motor Vehicle Safety Standards and has the Maple Leaf label.

LATCH/UAS can be used up to 35 lb/15.8 kg in rear-facing mode and up to 40 lb/18 kg in forward-facing mode.

You can find the date of manufacture, model name and model number on a label found on the back of the car seat as well as on the base.

You may find electronic copies of all user guides for Evenflo car seats and booster seats on our website at www.evenflo.com.

Many Evenflo car seats come with positioning inserts, which should be used per the instructions in your car seat manual. Using the insert that came with your car seat, if available, may help eliminate the gap between your child and the buckle in rear-facing mode.

If the positioning insert does not eliminate the gap, or if your car seat did not come with an optional positioning insert, you may use a small wash cloth to help fill in this gap with Evenflo rear-facing car seats. To use: place your child in the car seat, buckle and tighten the harness so that you cannot pinch any webbing when testing at the child's shoulders. Once tightened, slide the wash cloth in the gap between your child and the buckle.

If needed, you may also use tightly rolled receiving blankets placed next to your child to center them in the car seat. The positioning blankets should never be placed under the child or between the child and the harness. Additionally, the blankets should be positioned at or below the child's shoulder level and away from their mouth, face or neck.

The user guide for this car seat can be stored in the slot behind the car seat shell. It is a good idea to keep your user guide with your car seat at all times so you can refer back to this information as needed. Additionally, you may find an electronic copy of your user guide on our website at www.evenflo.com.

Generally, most Evenflo car seats allow approximately 20% of the bottom of the car seat to hang over the front of the vehicle seat. The majority of the bottom of the car seat (80%) should be supported by the vehicle seat. This applies whether the car seat is installed rear-facing, forward-facing or in booster mode, and whether installed with the vehicle seat belt or the lower anchor system.

In some minivans with optional second row center seats, you may find that the car seat bottom actually overhangs the side of the vehicle seat. In this situation, the same general guidance above applies - at least 80% of the bottom of the car seat must be supported by the vehicle seat.

This car seat has a 10 year expiration from the date of manufacture. The specific expiration date is listed on the date and model label on the product. Safety standards change over time as restraint technology develops. Expiration dates help ensure that old products are eventually removed from circulation, so all children can benefit from improvements.

Remember — this is an extended use car seat that's designed to take you from babyhood to ten years-old. The product has been tested to meet strict cycling and durability standards, so it's built to take you through childhood.

No, rest easy. The Revolve360 has you covered on safety from all angles. Only the parent/caregiver can rotate the car seat by squeezing the rotation handle on either side of the car seat.

The dimensions of the Revolve360 are 20.55 D x 25 H x 19.6 W inches (52.5cm D x 63.5cm H x 49.8cm W) when the car seat is positioned forward-facing in the lowest headrest position. Refer to this chart for additional measurements of the car seat:

Dimension Measurement

Width at widest point (cupholders) 19.6” (49.8 cm)

Depth (rear-facing at most reclined) 31” (78.7 cm)

Depth (rear-facing at most upright) 28” (71.1 cm)

Depth (forward-facing) 17” (43.2 cm)

Height (forward-facing lowest headrest position) 25” (63.5 cm)

Height (forward-facing highest headrest position) 30” (76.2 cm)

Depth of child’s seating area 12” (30.5 cm)

Lowest harness position (with infant positioning) 6” (15.2 cm)

Highest harness position 19” (48.3 cm)

Inner buckle position 3.5” (8.9 cm)

Middle buckle position 5” (12.7 cm)

Outer buckle position 6.5” (16.5 cm)

Length of buckle 4.75” (12 cm)

Highest booster belt guide position 20” (50.8 cm)

Tether length 45.6” (115.8 cm)

The Revolve360 can be transitioned from harness to booster mode easily —simply follow the included User Guide or our booster installation video.
