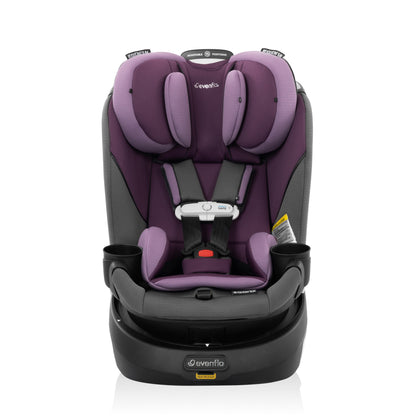

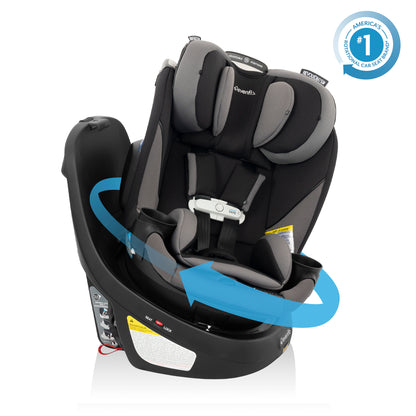

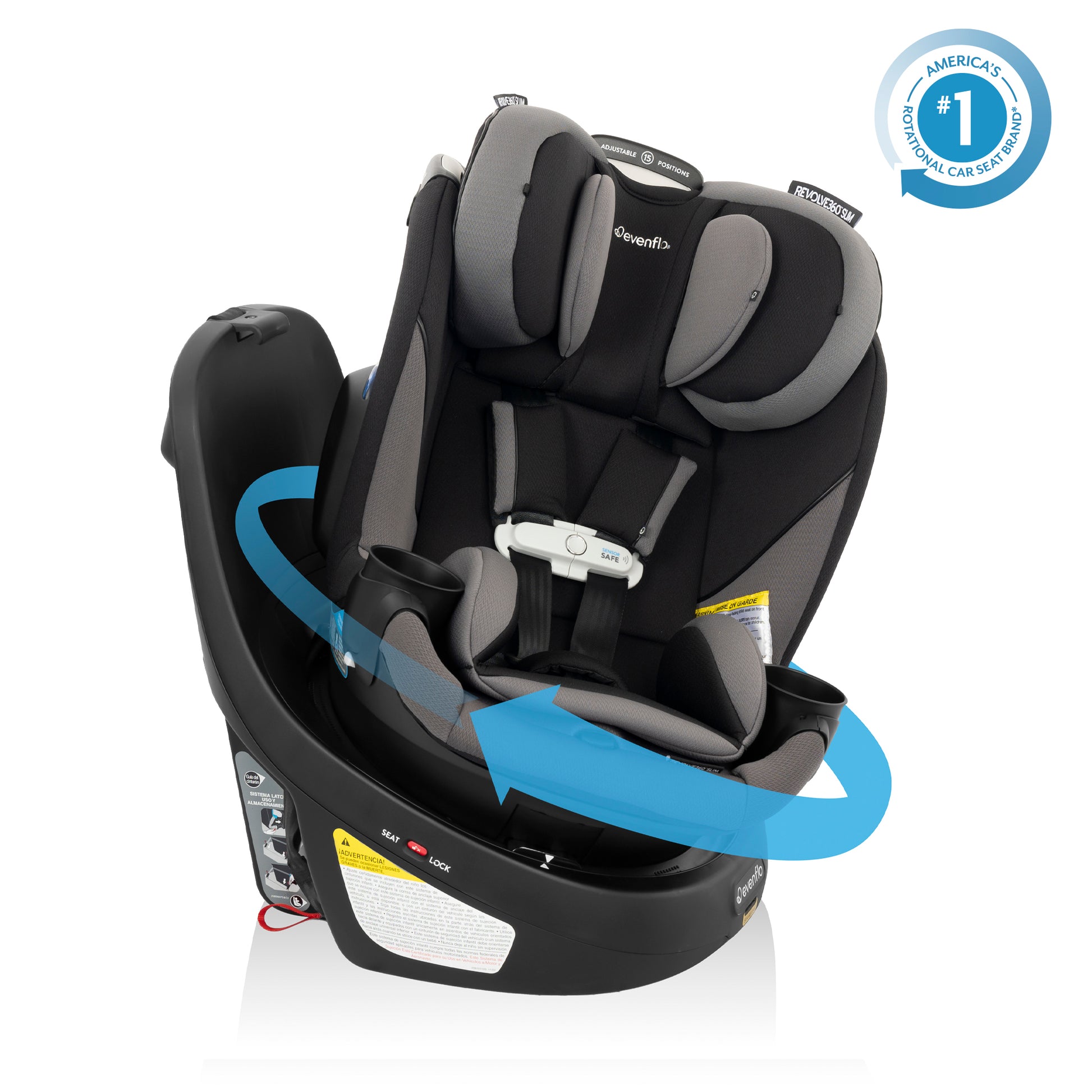

The dimensions of the Revolve360 are 20.55 D x 25 H x 19.6 W inches (52.5cm D x 63.5cm H x 49.8cm W) when the car seat is positioned forward-facing in the lowest headrest position. Refer to this chart for additional measurements of the car seat:
Dimension Measurement
Width at widest point (cupholders) 19.6” (49.8 cm)
Depth (rear-facing at most reclined) 31” (78.7 cm)
Depth (rear-facing at most upright) 28” (71.1 cm)
Depth (forward-facing) 17” (43.2 cm)
Height (forward-facing lowest headrest position) 25” (63.5 cm)
Height (forward-facing highest headrest position) 30” (76.2 cm)
Depth of child’s seating area 12” (30.5 cm)
Lowest harness position (with infant positioning) 6” (15.2 cm)
Highest harness position 19” (48.3 cm)
Inner buckle position 3.5” (8.9 cm)
Middle buckle position 5” (12.7 cm)
Outer buckle position 6.5” (16.5 cm)
Length of buckle 4.75” (12 cm)
Highest booster belt guide position 20” (50.8 cm)
Tether length 45.6” (115.8 cm)
